In today's technology-driven world, nothing can be more frustrating than poor cellular reception, especially when it hinders your daily communication, work or leisure activities. It's a common problem that many people face, and fortunately, there's a simple solution - external antennas. These antennas can help boost the signal strength of your mobile phones and improve the overall cellular reception.
In this blog post, we will take a closer look at Common RF Port Locations Cellular Devices Antenna Adapters and give a detailed description of different types of cellular phone external antenna ports. We'll also cover how to connect an external antenna to your mobile phone to help you never miss an important call or text message.
Common RF Port Locations
Mobile phones have advanced significantly over the years, improving their capabilities and features to provide users with seamless technological experiences. One of the essential components in modern-day mobile phones is the RF antenna port. The RF antenna port is the entry point for signals from the external antenna to your phone, amplifying and improving the reception quality.
Different phones have various RF antenna port locations. Some phones have the port on the back, while others have it on the side. The location is usually indicated by a small antenna icon, but if you're not sure, check your phone's manual or contact the manufacturer for assistance.
Cellular Phone External Antenna Ports
External antennas come in different types, and it's crucial to understand the types of antenna ports on your mobile phone to select the right external antenna adaptor.
1. Direct Connect Antenna Port: This port allows you to connect your antenna directly to your mobile phone without an adaptor. However, not all mobile phones have this type of port.
2. SMA Port: SMA stands for SubMiniature version A. It's a common connector for many external antennas and generally used in devices that require small-sized connectors.
3. TNC Port: TNC stands for Threaded Neill Concelman Connector. It's a coaxial connector with a screw locking mechanism, commonly used in military equipment and other applications that require dependable connections.
4. FME Port: FME stands for For Mobile Equipment. It's a connector that allows you to connect your phone to the external antenna using cable with FME male and FME female connectors.
Antenna Adapters

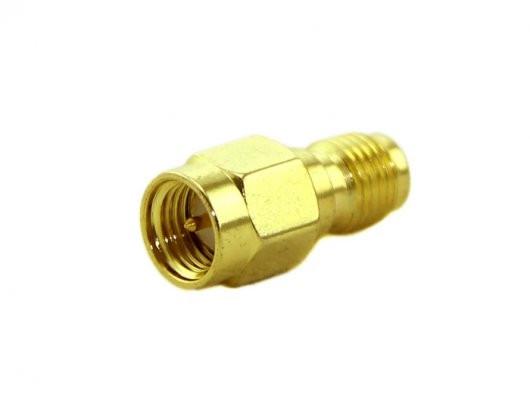

If your phone doesn’t have a direct connect port, you will need an antenna adaptor to connect your antenna. The adaptor converts the connector on your antenna to a connector that can fit into your phone's antenna port.
The type of adaptor needed depends on the type of antenna port your phone has. For example, if your phone has an SMA port, you'll need an SMA to FME adaptor. Similarly, if your phone has a TNC port, you'll need a TNC to FME adaptor. Most adaptors are small and lightweight, making it easy to carry around with you wherever you go.
External Antenna Connection
Connecting an external antenna to your mobile phone is relatively easy. Firstly, locate the RF antenna port on your phone and select the right adaptor for your phone's antenna port. Then, connect the adaptor to your phone's RF antenna port and attach the external antenna connector to the other end of the adaptor.
Once the connection is made between your phone and the external antenna, you should see an increase in your cellular signal strength. It's important to note that the strength of the signal depends on the strength of the external antenna and the quality of the cable.
In conclusion, external antennas are an easy and effective way to boost your cellular signal strength and improve reception quality. By understanding the different types of RF antenna port locations, antenna ports, and adaptors available, you can easily connect an external antenna to your mobile phone and enjoy better cellular reception. So, if you're tired of missed calls or slow data speeds, consider investing in an external antenna and experience the difference yourself.
