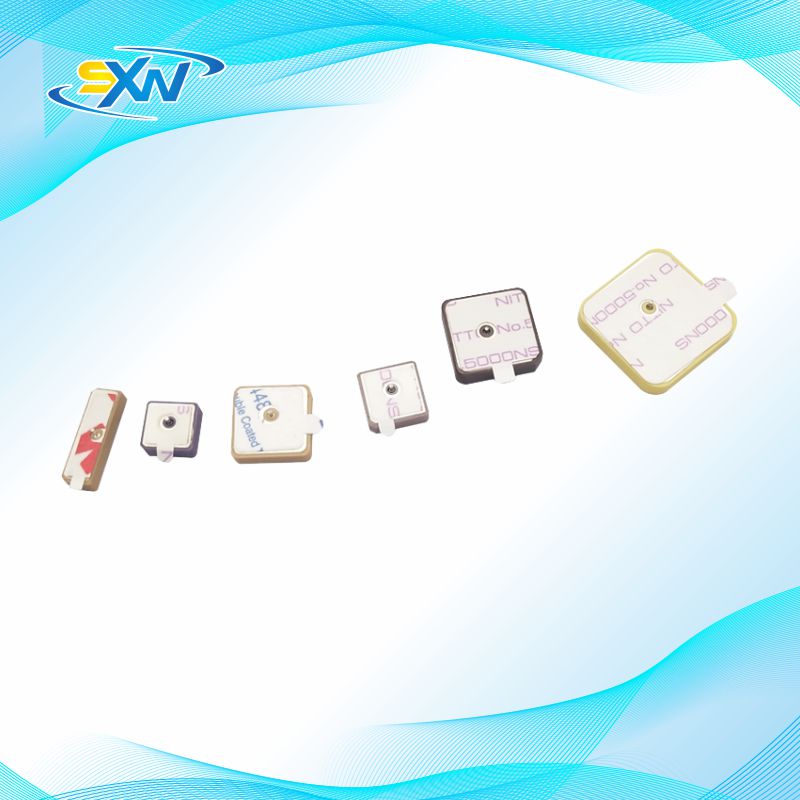

Ceramic surface pin mount dielectric GPS GLONASS Beidou antenna

Feature: • GPS 1575.42MHz or GLONASS 1602MHz or Beidou 1568.00MHz • Ceramic Material • Ground Plane Dependent • lower axial ratio • High performance and compact size • Through pin connector • Easy to Integrate • Size: 8X8mm, 10X10mm, 12X12mm, 15X15mm, 18X18mm, 20X20mm, 25X25mm, 16X6mm
send email to us

Products Details

Passsive pin mount dielectric patch GPS GLONASS antenna is designed for embedded applications such as GPS handheld units, mobile devices, and tracking devices. It is passive embedded GPS antenna without LNA. The interface connector is a through pin solution. Different frequency can be tuning to receiving great performance depends on customers’request.

Antenna Type

Ceramic embedded GPS GNSS antenna

Model Number

SXW-GPS-2N25

Frequency Range-MHz

GPS, GLONASS, GNSS,Beidou

1575.42MHz/1559MHz/1602MHz/1568.00MHz

Passive Gain (dBi)

3.5dBi

V.S.W.R

≤1.8

Axial Ratio

1.8 dB

Nominal Impedance-Ω

50ohm

Polarization

RHCP

Radiation Pattern

Hemispherical

Noise Figure

1.5dB

Size Dimensions-mm

8*8/10*10/12*12/15*15/18*18/20*20/25*25mm

Mounting way

Through-hole mount

Termination

Pin

Efficiency (%)

65%

Operating Temperature

-40℃~+80℃

Storage Temperature

-40℃~+85℃

Environmentally Friendly

ROHS,CE,ISO Compliant

1. Great signal reception SXW-GPS-2N25 embedded ceramic GPS/GLONASS/BeiDou patch antenna’s wide band of operation leads to excellent gain and radiation pattern stability on all four common commercial GNSS systems worldwide. Compared to using a smaller antenna, this will translate into the GNSS system having much higher location accuracy, improved reliability of lock in urban areas, better signal reception, with more satellites acquired and a quicker time to first fix. The patch is mounted via pin and double-sided adhesive. 2. Wideband GPS GLONASS for many applications This 25mm ceramic GPS/GLONASS/Beidou embedded passive patch antenna, with a 2mm or 4mm low profile. It is designed for vehicle telematic applications as well as other M2M/IoT devices. Typical applicable industries are transportation, defense, marine, agriculture, and navigation.It is working at GPS 1575.42MHz and GLONASS 1602MHz, with 3.23dBi gain and 3.53dBi gain, respectively. The low profile design makes this antenna perfect for applications where space is limited. It can be easily through-hole mounted on PCB via pin.• Vehicle and fleet tracking • Position tracking system • Embedded design • Oil & gas industries • Remote Technology/Monitoring • Handheld devices • M2M applications • Military & security • Smart phone
