| Antenna Type | 868MHz terminal antenna |
| Part Number | SXW-ISM-B8 |
| Frequency Range-MHz | 868MHz |
| Gain | 3DBI |
| V.S.W.R | ≤1.8 |
| Impedance | 50 Ohms |
| Polarization | Linear |
| Radiation | Omni |
| Dimensions-mm | 110x12.5mm |
| Antenna style | Blade tilt / swivel |
| Colour | Black or white |
| Antenna Cover | TPEE/ABS |
| Connector | SMA male/RPSMA male |
| Operating Temperature | -40℃~+80℃ |
| Storage Temperature | -40℃~+85℃ |
| Compliant | ROHS,CE,ISO |

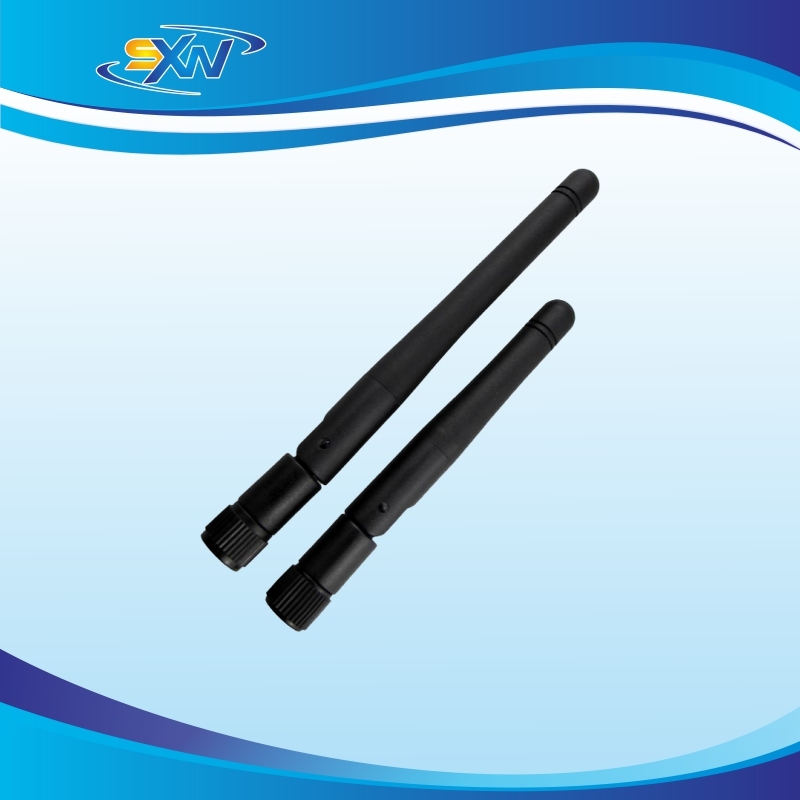

1. Allowing straight, 45°and 90°positions along with 360°rotation SXW-ISM-B8 terminated with an SMA male connector, it is ideally suited to applications requiring a simple, cable free set up for RFID readers or Short Range Devices within Europe. The knuckle design allows the antenna to be positioned to take best advantage of the incoming signal. Allowing straight, 45°and 90°positions along with 360°rotation. The omni directional, radiating element is capped with a black high-grade rubber mould. 2. 1/2 wave and groundplane independent dipole antenna It is an 868MHz dipole antenna,1/2 wave and groundplane independent, designed for ISM-Band terminals and devices that do not have a groundplane or metal surface on which to mount a 1/4 wave antenna. 3. High performance and protable Housed in a durable sheath, the SXW-ISM-B8 has a multi-position SMA-Male connector that allows the antenna to operate in a horizontal or vertical position. This makes it suitable for portable devices where the orientation of the product is subject to change or is not known.With a VSWR of less than 2:1 and a gain of 2 dBi, it is an effective antenna solution for a range of 868 MHz ISM band application.• M2M solution • RFID devices reader • Consumer Tracking
