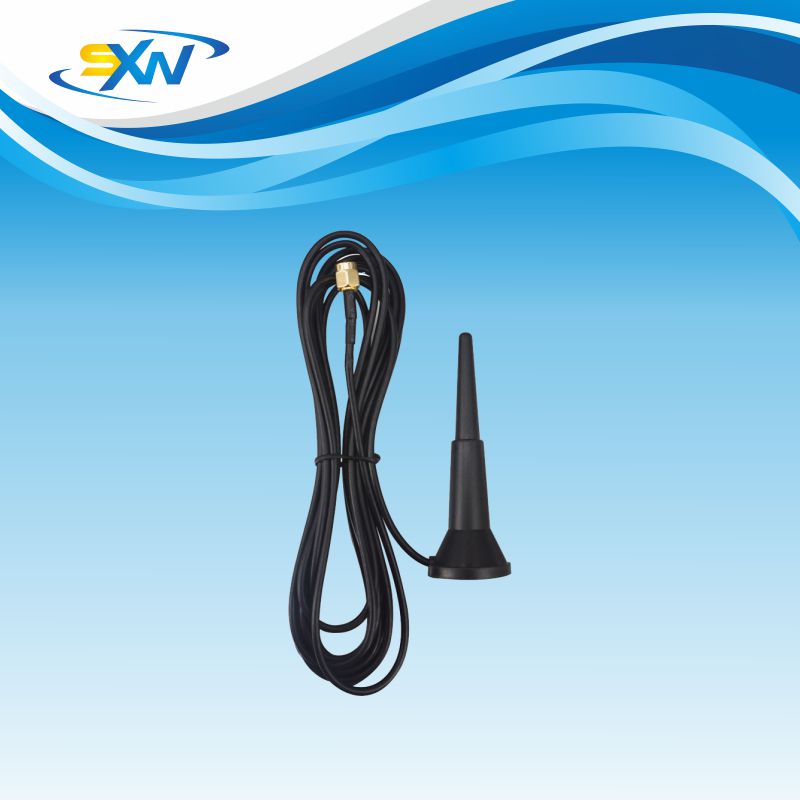

Waterproof mini rugged mag GSM/UMTS antenna, 3 meter, SMA male connector

Features: 824-960 and 1710-2170 MHz • Rugged • IP65 waterproof level • Magnet base for mounting on steel surfaces • Antenna Cover: Plastic • Strong adaptability of environment

Products Details

Waterproof mini rugged mag GSM/UMTS antenna is the small and waterproof antenna for cellular devices. This antenna will allow you to connect your cellular module to the outside world. Its antenna base equips a magnetic base to make it easy to place your antenna anywhere at your convenience. it is suitable for GPRS and 3G networks. Applications include vending, access points, telematics and telemetry deployments.• Vending • GSM modems • Access points • GSM Alarm System

Antenna Type

GSM external antenna

Model Number

SXW-GSM-DXG3

Supported Frequency Range

824MHz-960MHz/1710MHz-2170MHz

Gain-DBi

3.5dBi Max

V.S.W.R

≤1.8

Impedance-Ω

50ohm

Polarization

Vertical

Maximum power-W

50W

Dimensions-mm

88*30mm

Pattern

Omnidirectional

Housing material

TPEE/ABS

Waterproof level

IP65 rating

Mounting style

Magnetic mount or sticker tape mount

Cable type

Low loss RG174 coax cable

Length Of Cable

3 Meter(Cable length can be customized )

Antenna radome color

Black

Termination( Connector)

SMA NICKEL; optional FME, MMCX, MCX etc.

Weight

55g

Humidity-%

5~95%

Operating temperature

-40℃~+80℃

Storage temperature

-40℃~+85℃

Compliant

ROHS, CE, ISO

1. Increasing the communication distance of the wireless module The Magnetic Base waterproof GSM Antenna is the same as the ordinary antenna, the main function is to radiate and receive radio waves. The suction cup antenna is fixed in a certain place by passing the antenna through the suction cup at the bottom to avoid accidents. Because its suction cup base is relatively stable, it is widely used on vehicles. In the wireless module industry, a suction cup antenna is often used in conjunction with a wireless module to achieve the purpose of increasing the communication distance of the wireless module. 2. Waterproof TPEE/ABS housing SXW-GSM-DXG3 is a waterproof magnetic base GSM antenna. It is made of waterproof TPEE/ABS material about the housing. This benefit allows it to operate normally in harsh environments.
