| Antenna Type | Panel mounting puck antenna |
| Part Number | SXW-ISM-DXM4 |
| Frequency Range-MHz | 433MHz 868MHz,915MHz,WIFI,GSM 3G 4G,GPS frequency options |
| Bandwidth | 10MHz |
| Gain-DBi | 5DBI |
| V.S.W.R | ≤2.0 |
| Nominal Impedance-Ω | 50 |
| Polarization | Linear |
| Maximum Power-W | 50 |
| Radiation | Omnidirectional |
| Dimensions(ØxH) | 30*80 |
| Material | ABS radome material |
| Mounting method | M12 14mm Stud Panel mounting/wall mounting |
| Connector | (SMA/FME/MCX/MMCX/BNC/N male options) |
| Cable type | Low loss RG174/RG58 coax cable |
| Cable length | 3meter(other lengths are available) |
| Lightning Protection | DC-Grounded |
| Colour | White,black or gray |
| Waterproof rating | IP65 |
| Operating Temp | -40°C to 85°C |
| Storage Temperature | -40℃~+85℃ |
| ROHS,CE,ISO Compliant | YES |

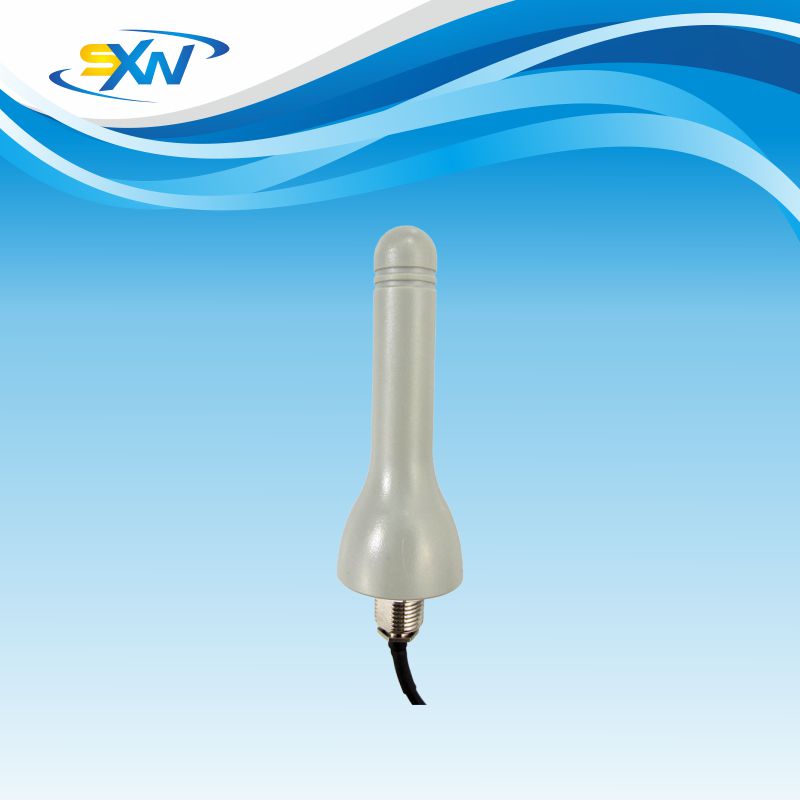

1. Rugged,black colour IP65 UV stable ABS cover The SXW-ISM-DXM4 433MHz frequency quarter wave antenna comprises of a rugged, black IP65 UV stable ABS cover set in to a brass M12 base thread coupling unit.White or gray colour cover is also available. 2. Offer great signal strength This is strong short antenna ideally suited to panel mounting or remotely from the device on a bracket to maximise signal strength.For its comparatively small size the antenna has a good peak gain of 5dBi and omni directional radiation. 3. Different connector or cable length options Supplied as standard with an SMA male connector and 3m of cable. The antenna can be supplied with alternative cable lengths or connector types if you have short run volume orders.
• Smart home solution • Internet of Things (IoT) devices • Remote control vending machines • Gate openers • Security systems
