Factory Direct: Waterproof Wideband Yagi Antenna For 2G 3G 4G LTE

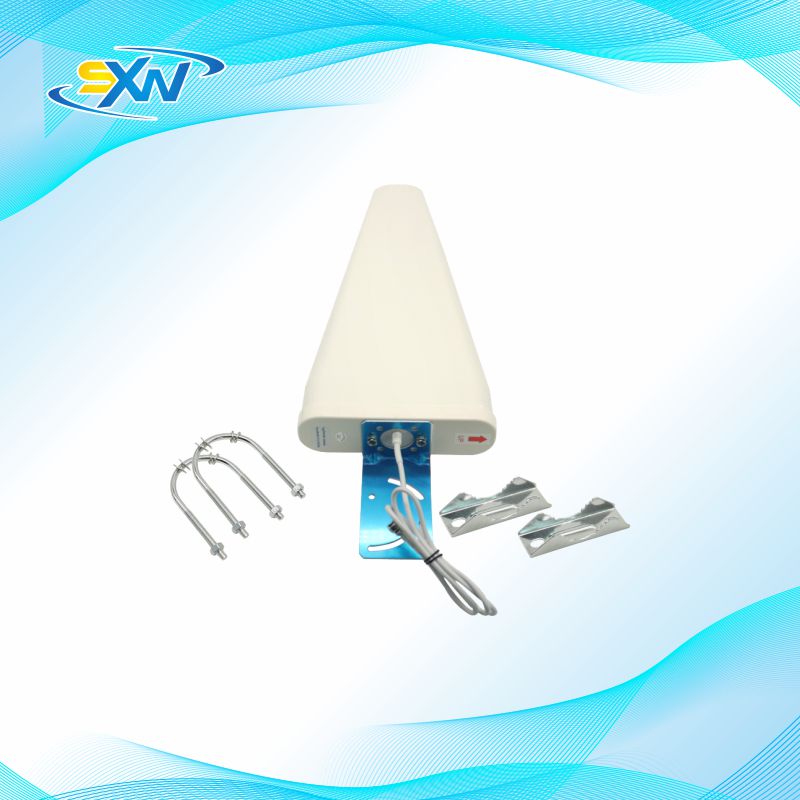

Waterproof wideband directional 2G 3G 4G LTE log periodic yagi antenna

Features: • High efficiency, compact antenna design • Weatherproof ABS radome material • Pole mounting method • UV stable sealed radome • DC grounded for lightning protection • Work together with active network device(signal booster/repeater/router/access poin)

2G 3G 4G LTE external log periodic yagi antenna focus its signal in one direction leading to greater gain figures. It covers the wide multi-range 2G 3G 4G LTE and works with wifi router, repeater. This small, light-weight, easy-to-install directional antenna improves transmit and receive signals across a wide frequency spectrum range and is ideal for many outdoor applications, including building rooftops, utility poles, surveillance trailers, well sites, remote telemetry units, meters, homes and offices.1. Mount antenna as high as possible 2. Keep coax leads as short as possible 3. Don't use 75 Ohm coax (RG6, RG59) 4. Don't use a splitter to connect 2 modem ports to the antenna 5. Fully tighten coax connectors to antenna connectors 6. Position away from other antennas, lighting fixtures, motors, Low-E or tinted/coated windows, large metal or concrete objects 7. Stand 3+ feet away from antenna when testing 8. Maximize signal Quality (SINR, RSRQ) not signal Strength (RSSI, RSRP, bars)

Antenna Type	2G 3G 4G outdoor antenna
Model number	SXW-4G-WY8
Frequency Range	698-2700MHz
Peak Gain	9DBI
V.S.W.R	≤1.8
Input Impedance	50 ohm
Polarization	Vertical
Maximum Input Power	50 Watt
Mounting way	Pole or Wall (U-bolts & L bracket included)
Pattern Radiation	Directional
Lightning Port	DC ground
Radome material	ABS / Brass / Aluminum
Dimensions-mm	480mm
Rated Wind Velocity	60m/s
IP Rating	IP65
Cable type	RG58/LRM195/LMR200/LMR400 cable and so on
Cable length	5meter(can be shorter or longer)
Connector	N-Female(SMA/FME customized)
Color	White
Operating Humidity	≤ 95%
Operating Temperature	-40℃~+80℃
Storage Temperature	-40℃~+85℃
ROHS, CE, ISO Compliant	YES

• 2G 3G 4G LTE cellular network • Building rooftops • Utility poles • Surveillance trailers • Remote telemetry units • Meters • Homes and office
